horizontal cement silo

SDCAD Horizontal Silo serves as an excellent supplement to mobile concrete batching plants, boasting three core advantages: versatile use, easy management, and mobility. It requires no complex foundation—only a flat and sufficiently solid ground to operate, eliminating the need to apply for installation authorization and significantly lowering the threshold for early-stage deployment.

With optional jacks, the silo can be loaded onto or unloaded from trucks without relying on cranes, adapting to the flexible relocation needs of construction sites. When SDCAD mobile equipment is used as a fixed concrete batching plant, the silo can be directly connected to the SDCAD control unit, enabling non-stop cement loading and effectively increasing concrete output. It can also be equipped with an optional load cell system to accurately control the amount of cement delivered and remaining, avoiding waste and the risk of material shortage. For long-term fixed batching plants, we recommend SDCAD Vertical Cement Silo, which provides a more cost-effective and efficient storage solution.

SDCAD Horizontal Cement Silo: The Top Choice for Space-Limited & Mobile Projects

If your project needs frequent silo relocation or works in height-restricted areas, SDCAD Horizontal Cement Silo is the solution you can rely on. Designed by SDCAD’s seasoned engineers, this silo isn’t just for cement—it also handles lime, fly ash, sand, and other materials with similar properties, making it a versatile workhorse for diverse construction needs.

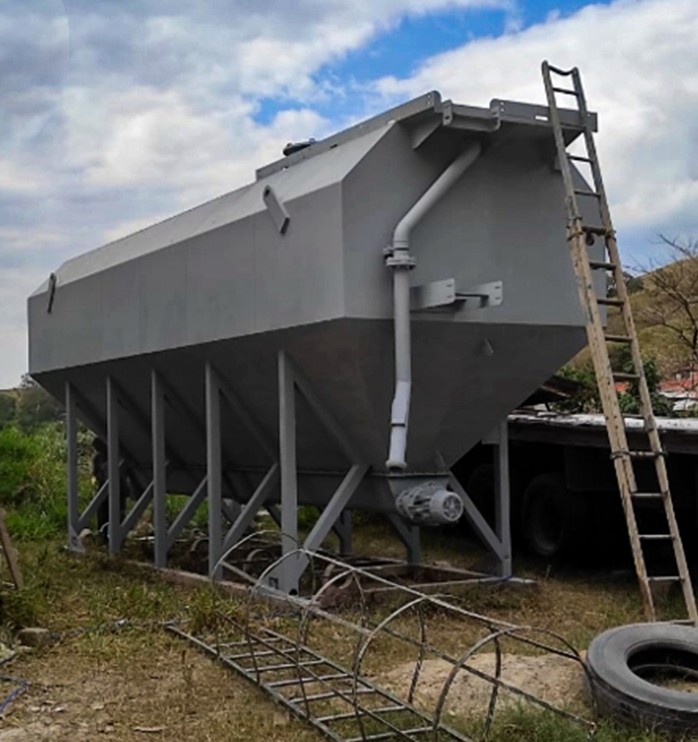

What truly sets it apart is its hassle-free usability. Unlike traditional silos that demand complex foundations or ground anchoring, SDCAD Horizontal Cement Silo simply sits on flat ground to start working. No digging, no permits for foundation work—you save time on setup and focus on getting production rolling faster. When it’s time to move to a new spot? Its adjustable telescoping legs take the stress out of transportation: you don’t need a crane. Just position the silo onto a truck in minutes, and it’s ready to head to the next job site.

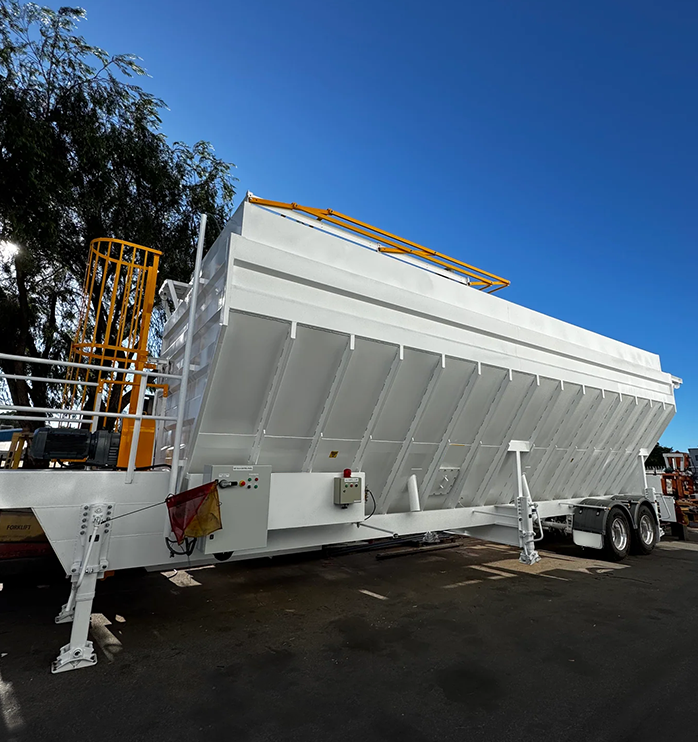

We offer two practical capacity options—40 tons and 70 tons—perfect for both bulk storage and precise batching. Every silo features a heavy-duty structure, built to withstand the rigors of sea and land transport. Even better, if you need to shift the silo short distances on-site, optional axles and tires let you tow it directly on its own frame to your desired location. No extra equipment, no complicated disassembly—just quick, flexible movement tailored to your project’s pace.

Type of Horizontal Cement Silos

Horizontal cement silos, also known as mobile or low-profile cement silos, are compact bulk storage units designed for easy transportation, quick installation, and flexible placement. Unlike traditional vertical silos, they do not require complex foundations or crane-assisted assembly. These silos are especially suitable for temporary construction sites, mobile batching plants, and containerized concrete production systems.

Difference Between Types of Horizontal Cement Silos

Horizontal silos can be classified by capacity, mobility, and discharge system:

By capacity: Available from 20 to 100 tons, making them ideal for small and medium-sized projects.
By mobility: Some models are equipped with wheels or skid-mounted frames for quick relocation between job sites.
By discharge type: Screw conveyor discharge or pneumatic discharge options are available, depending on the material and batching system.
By configuration: Standard models include a built-in air compressor, dust filter, and level indicator, while high-end versions integrate a weighing system for precise material dosing.

Compared with vertical silos, horizontal cement silos are more compact, easier to move, and require minimal installation space — a perfect match for contractors needing flexible cement storage solutions.

Applications of Horizontal Cement Silos

Horizontal cement silos are mainly used in:

Mobile concrete batching plants for storing and feeding cement or fly ash.
Remote or temporary construction projects such as bridges, tunnels, or rural development sites.
Containerized batching systems for overseas projects that require fast setup and dismantling.
Bulk powder storage and transfer terminals where space height is limited.

Their modular, low-profile design makes them highly suitable for export and quick deployment across multiple sites.

Main Technical Specifications and Performance Indicators

Key technical parameters include:

Storage capacity: 20–100 tons
Overall height: 2.5–3.5 meters (low-profile for easy loading/unloading)
Discharge diameter: Φ219–Φ273 mm screw conveyor outlet
Feeding method: Pneumatic or mechanical
Air compressor power: 3–7.5 kW
Dust filter capacity: 24–48 m² filter area
Material: Q235B or Q345B carbon steel, with epoxy or galvanized coating

Performance highlights:

Low center of gravity: Ensures stable positioning without heavy foundation work.
Fast setup: Ready for operation within a few hours after unloading.
Easy maintenance: All components accessible at ground level.
Excellent sealing: Prevents material leakage and protects powder quality in humid environments.

Price Factors and Price Range

The price of a horizontal cement silo depends on several variables:

Storage capacity (20–100 tons) — larger models use thicker steel plates and more reinforcements.
Optional systems — inclusion of air compressor, level gauge, weighing sensors, or integrated dust filters.
Surface treatment — galvanized finish costs more but offers superior corrosion protection.
Mobility feature — wheel-mounted and trailer-type silos add convenience but increase price slightly.

Typical price range:

Small (20–50 tons): USD 3,500 – 6,500
Medium (60–80 tons): USD 6,800 – 9,000
Large (100 tons): USD 9,000 – 12,000

Export Advantages of SDCAD Horizontal Cement Silos

SDCAD horizontal cement silos are designed specifically for export applications, emphasizing mobility, durability, and ease of operation:

Containerized shipping design: Entire silo structure fits into a standard 40HQ container, minimizing logistics costs.
Integrated systems: Comes with air compressor, filter, and screw conveyor for plug-and-play operation.
Fast installation: No welding or heavy foundation required — perfect for overseas sites with limited equipment.
Premium materials: Optional hot-dip galvanization or marine-grade paint extends lifespan up to 20 years.
Flexible customization: Capacity, outlet diameter, and discharge method can be tailored to match any batching system.
Global compliance: Manufactured under ISO and CE certifications, suitable for markets in Europe, South America, and Southeast Asia.

SDCAD provides turnkey horizontal silo solutions that combine compact design, stable performance, and reliable powder handling — ensuring maximum convenience and cost efficiency for international concrete producers.
