Anatomy of a Precast Concrete Plant
In a nutshell, what’s the anatomy of a precast concrete plant? Every plant is configured to optimize productivity, maximize product quality and produce throughout the year, irrespective of exterior weather conditions. The whole facility is set up to provide a consistent feed from stockpile to shipment.
Plant layout, integrated technology and dedicated work zones contribute to smooth workflow and volume output.

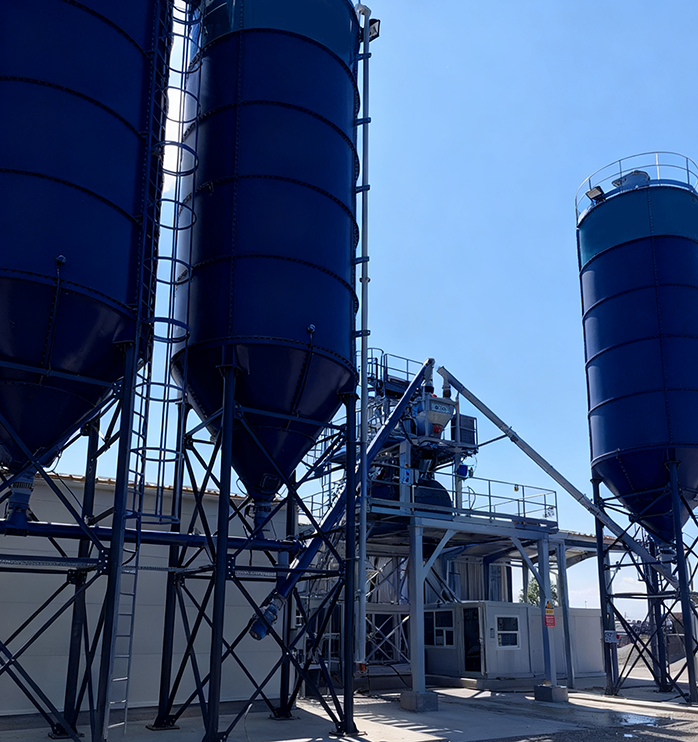

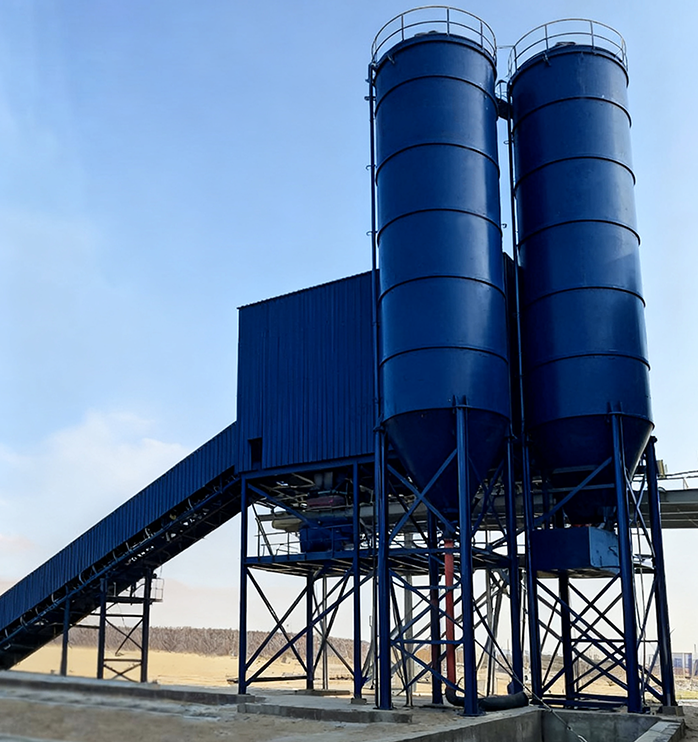

1. Batching System
Batching system, the heart of a precast plant. This section manages the precise weighing and mixing of cement, aggregates, water, and admixtures. Automated batching, with load cells and programmable logic controls, maintains mix designs every cycle, which is key for panels, utility vaults, or manholes.
Batchers may be installed dry, wet, or semi-wet for the product type and strength. They are capable of both wet batching for large structural elements and dry batching for simpler products. Speed and accuracy in batching reduce waste and enable high-volume runs, which is crucial for plants making hundreds of elements per day.
2. Mixing Unit
Mixers come in different types: planetary, twin-shaft, and pan mixers are most common. Each provides the kind of consistency required for items such as sandwich wall panels or stormwater detention vaults. Mixing time is important; if you mix too briefly, the mix tends to be uneven.
If you mix too long, material properties can change. Most plants modify mixing time according to aggregate size, type of cement, and desired finish. Mixer capacity matters too. Big-capacity mixers for big projects enable plants to keep up when demand surges.
Plants can interchange mixers or add additional units to process specialty products or increased volumes.
3. Concrete Distribution
To transfer wet concrete from mixer to mold, plants employ conveyor belts, buckets, or overhead cranes. An efficient distribution configuration keeps manufacturing humming and prevents back-ups. Conveyor systems are favored for big plants since they transport concrete rapidly to many different stations.
The arrangement of distribution points, like central hoppers or mobile carts, impacts the speed at which crews can fill forms. Accuracy is paramount, particularly for thin wythes in wall panels where overfilling or underfilling compromises strength and finish.
Some plants may use automated placement arms or augers for complex shapes or tight tolerance work.
4. Curing Chambers
Curing chambers supply consistent warmth and moisture so concrete hits desired strength. This step is of utmost importance from both a structural and finish perspective. Steam curing, moist curing, and sealed chambers are used depending on product and volume.
A well-designed chamber provides even temperature and humidity, minimizing defects such as cracking or surface blemishes. For sandwich panels, targeted curing guarantees insulation remains bonded between concrete layers.
Curing lengthens product life, particularly for outdoor pieces such as culverts or catch basins, which endure rough environments once installed.
5. Quality Control Lab
The quality control lab monitors material and product performance. Crew conducts slump tests, compressive strength tests, and checks finish prior to shipping. Labs employ automated equipment for quicker and more accurate results, such as digital sensors for mix temperature or strength.
Training continues so all are on the proper protocols and documenting for audits. These results feed back to batching and mixing units, so the plant can adapt to changes in raw materials or client needs.
This loop keeps standards high and errors low, regardless of the product, whether that is a simple manhole or a complex insulated wall panel.
